Click-on modules


The demand to build a comprehensive and accurate picture of the subsoil by using additional parameters from in-situ soil investigation is increasing. For example it may be required to derive the in-situ properties of both soil stratigraphy and soil elasticity to design a foundation that is subject to vibration; or both the soil density and soil electrical conductivity to allocate contaminated layers and predict future distribution. In general these parameters can only be acquired by separate systems (seismic, conductivity, magneto, etc.) and in subsequent tests. Apart from being time consuming, this process may also negatively affect the accuracy of the information obtained.

Our digital CPT data acquisition system eliminates these drawbacks. By moving to smart digital communication, sufficient bandwidth over a thin flexible measuring cable was created to accommodate additional parameters, without the need for changing cones, cables or data loggers. The following click-on modules are developed. All modules can be used with a 10 cm2 and a 15 cm2 Icone. When CPT-data are not required, the click-on modules can also be used with a dummy tip instead.

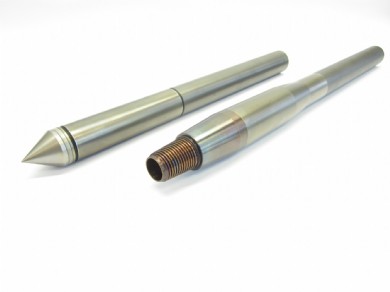

Icone Seismic
Icone Seismic

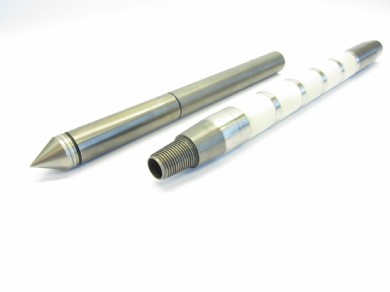

Icone Conductivity
Icone Conductivity

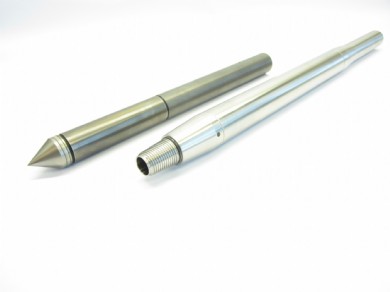

Icone Magneto
Icone Magneto

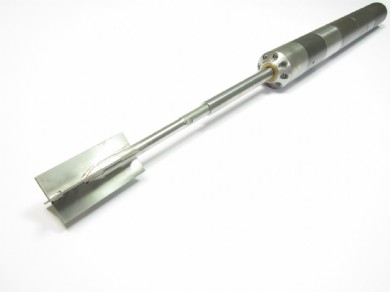

Icone Vane
Icone Vane
